radio detection module/Countermeasure signals fully/omni-directional antenna/Device dual mode selectable

 Product Overview

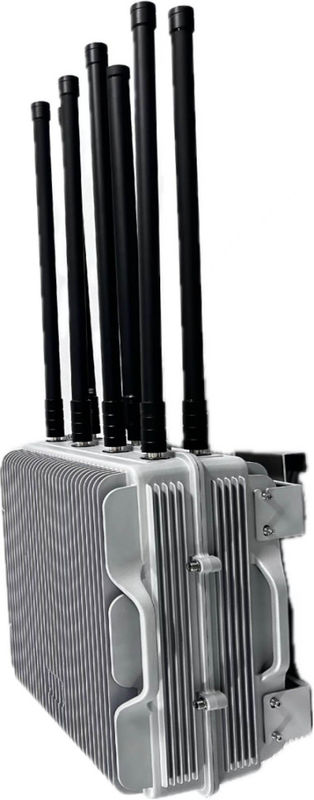

The chassis-type drone detection and strike integration equipment combines the drone detection and countermeasure system, which can detect and recognize the intruding drone and jamming countermeasure, and the equipment adopts the chassis-type design, which is convenient for the field operation. It is equipped with the functions of detecting, recognizing, intercepting, driving away and forced landing of black-flying drones. Applying spectrum monitoring technology and UHF sweeping technology to transmit a variety of broadband signals, it can effectively detect and suppress the mainstream drone remote control, video transmission and positioning bands in the current market, forcing the drone to lose control and causing it to return to its home base, forced landing and other effects. It is suitable for public security, electric power system, anti-terrorism field, military strongholds, airports, prisons and guards, activity sites, breeding farms and other low-altitude security strongholds.

Product Features

u Countermeasure signals fully cover the remote control, videotransmission and positioning bands of mainstream drone products；

u Adopting radio detection module, it can automatically detect drones and provide early warning alerts;

u Adopting omni-directional antenna, 360 degrees without dead angle, indiscriminate detection and countermeasures.；

u Seven-channel output for major civilian drones, effective segmented control, arbitrary switching mode；

u Chassis design, equipped with a handle, easy to operate；

u Adopting radio detection module, it can automatically detect drones and provide early warning alerts；

u Device dual mode selectable: automatic mode, manual mode；

Equipment parameters

1. Frequency bands and power

2. Safety and standards

3. Electrical standards

4. Mechanical parameters

5. Environmental adaptability

It can detect and identify drones, emit interference signals of the above seven frequency bands, detect and identify drones, and interfere with the wireless control link, GPS link and wireless video transmission signals of drones, with independent control switches for each frequency band. The device has the function of displaying the working status, battery power and other working status, and various instructions are clear.

 Product Dispaly

packing list

Before you start using it, please check if all the above items are included in the equipment package. If any are missing, please contact us.

Operating Instructions

l The chassis-type detection and fight integration equipment can detect most drones and have a variety of interference bands; omnidirectional equipment, need to be placed on a high point, the higher the placement of the equipment to cover a distance of the farther, in the process of use, please choose to use the appropriate frequency band to counteract the drone.

l Steps for use:

Step 1: First, connect the antenna to the corresponding band and tighten it.；

Step 2: Select Mode；

Pure detection: press the automatic switch, at this time the detection of drones, the device will sound the alarm

Automatic mode: first press the automatic switch, then press the countermeasure band switch, at this time the device enters the automatic detection and automatic strike mode, when a drone is detected, the device will give an alarm and automatically carry out countermeasure in the corresponding frequency band, when there is no drone, the device is in a silent power-saving state.；

Manual mode: press the manual master switch first, then press the countermeasure frequency bands you need to use to jam drones using those bands;

It can be operated on both the main unit and the handle. If you need to operate with the handle, please access the handle for use.
